Casing Spools

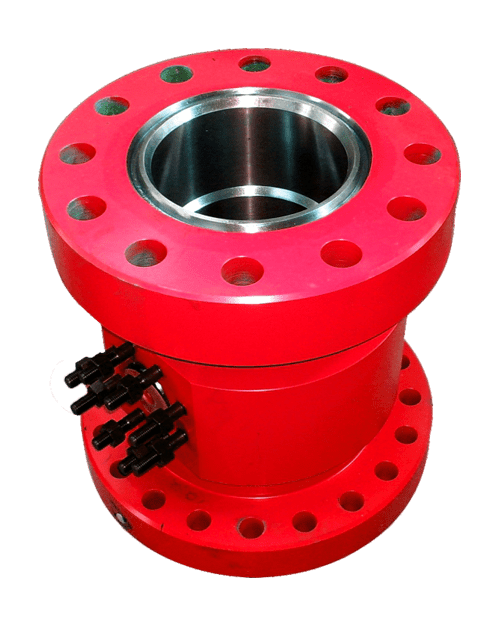

SW-22 casing spools feature a straight bore design that
is compatible with slip and mandrel type casing hangers.
- Features a 45° landing shoulder capable of supporting maximum loads
- Prevents test plugs from wedging under pressure
Casing Spools
Specifications
| Casing Heads | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Bottom Flange Size |
Working Pressure |
Top Flange Size |
Working Pressure |
Outlet |
A |
B |
C |
D |
Part Number |
| 11" | 3,000 | 11" | 3,000 | 2 1/6"Stdd | 20 5/8" | 10 1/4" | 10 7/8" | 10" | N/A |
| 11" | 3,000 | 11" | 5,000 | 2 1/16"Stdd | 22 1/4" | 10 1/4" | 10 7/8" | 10" | N/A |
| 11" | 5,000 | 11" | 5,000 | 2 1/16"Stdd | 23 7/8" | 12 3/4" | 10 7/8" | 10" | N/A |
| 11" | 5,000 | 11" | 10,000 | 1 13/16"Stdd | 24 3/4" | 13 5/8" | 10 7/8" | 10" | N/A |
| 11" | 10,000 | 11" | 10,000 | 1 13/16" | 25 5/8" | 14 1/2" | 10 7/8" | 10" | N/A |
| 13 5/8" | 3,000 | 11" | 3,000 | 2"LP | 22 5/8" | 10 1/4" | 10 7/8" | 10" | N/A |
| 13 5/8" | 3,000 | 11" | 3,000 | 2 1/16"Stdd | 22 5/8" | 10 1/4" | 10 7/8" | 10" | N/A |
| 13 5/8" | 3,000 | 11" | 5,000 | 2"LP | 25 1/4" | 12 3/4" | 10 7/8" | 10" | N/A |
| 13 5/8" | 3,000 | 11" | 5,000 | 2 1/16" | 25 1/4" | 12 3/4" | 10 7/8" | 10" | N/A |
| 13 5/8" | 5,000 | 11" | 5,000 | 2 1/16"Stdd | 25 1/8" | 12 3/4" | 10 7/8" | 10" | N/A |
| 13 5/8" | 5,000 | 11" | 10,000 | 1 13/16"Stdd | 26" | 13 1/2" | 10 7/8" | 10" | N/A |
| 21 1/4" | 2,000 | 13 5/8" | 3,000 | 2 1/16"Stdd | 26 3/4" | 10 5/8" | 13 1/2" | 12 1/2" | N/A |
| 20 3/4" | 3,000 | 13 5/8" | 3,000 | 1 13/16"Stdd | 27 5/8" | 10 5/8" | 13 1/2" | 12 1/2" | N/A |
| 20 3/4" | 3,000 | 13 5/8" | 5,000 | 2 1/16"Stdd | 28 5/8" | 12 1/8" | 13 1/2" | 12 3/8" | N/A |
