Casing Heads

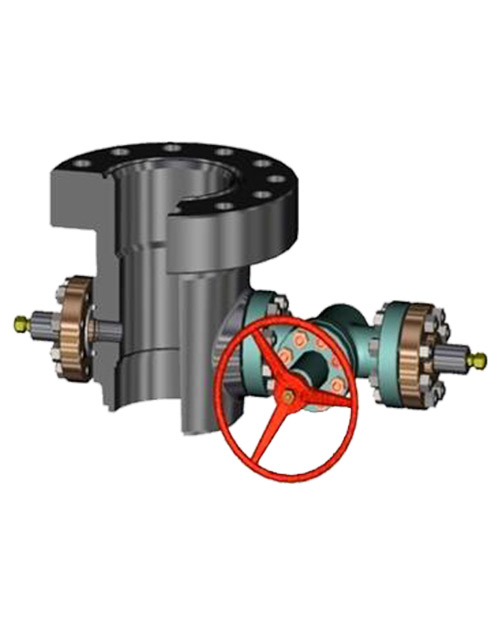

SW-22 casing heads feature a straight bore design that is compatible with slip and mandrel type casing hangers.
- Features a 45° landing shoulder capable of supporting maximum loads
- Prevents test plugs from wedging under pressure
Casing Heads
Specifications
| Casing Heads | |||||||
|---|---|---|---|---|---|---|---|
|
Flange Size |
Working Pressure |
Casing Size |
A |
B |
C |
D |
Part Number |
| 11" | 2,000 | 9 5/8" | 17" | 10 1/8" | 10 7/8" | 9" | N/A |
| 11" | 3,000 | 8 5/8" | 17" | 10 1/8" | 10 7/8" | 8" | N/A |
| 11" | 3,000 | 9 5/8" | 17" | 10 1/8" | 10 7/8" | 9" | N/A |
| 11" | 3,000 | 10 3/4" | 17" | 10 1/8" | 10 7/8" | 10" | N/A |
| 11" | 5,000 | 8 5/8" | 17" | 10 1/2" | 10 7/8" | 8" | N/A |
| 11" | 5,000 | 9 5/8" | 17" | 10 1/2" | 10 7/8" | 9" | N/A |
| 11" | 5,000 | 10 3/4" | 17" | 10 1/2" | 10 7/8" | 10" | N/A |
| 13 5/8" | 3,000 | 13 3/8" | 17" | 10 1/4" | 13 1/2" | 12 1/2" | N/A |
| 13 5/8" | 5,000 | 13 3/8" | 19" | 10 1/4" | 13 1/2" | 12 3/8" | N/A |
| 21 1/4" | 2,000 | 20" | 20" | 10 1/4" | 21 1/8" | 19" | N/A |
| 20 3/4" | 3,000 | 20" | 23" | 15" | 20 1/8" | 19" | N/A |
